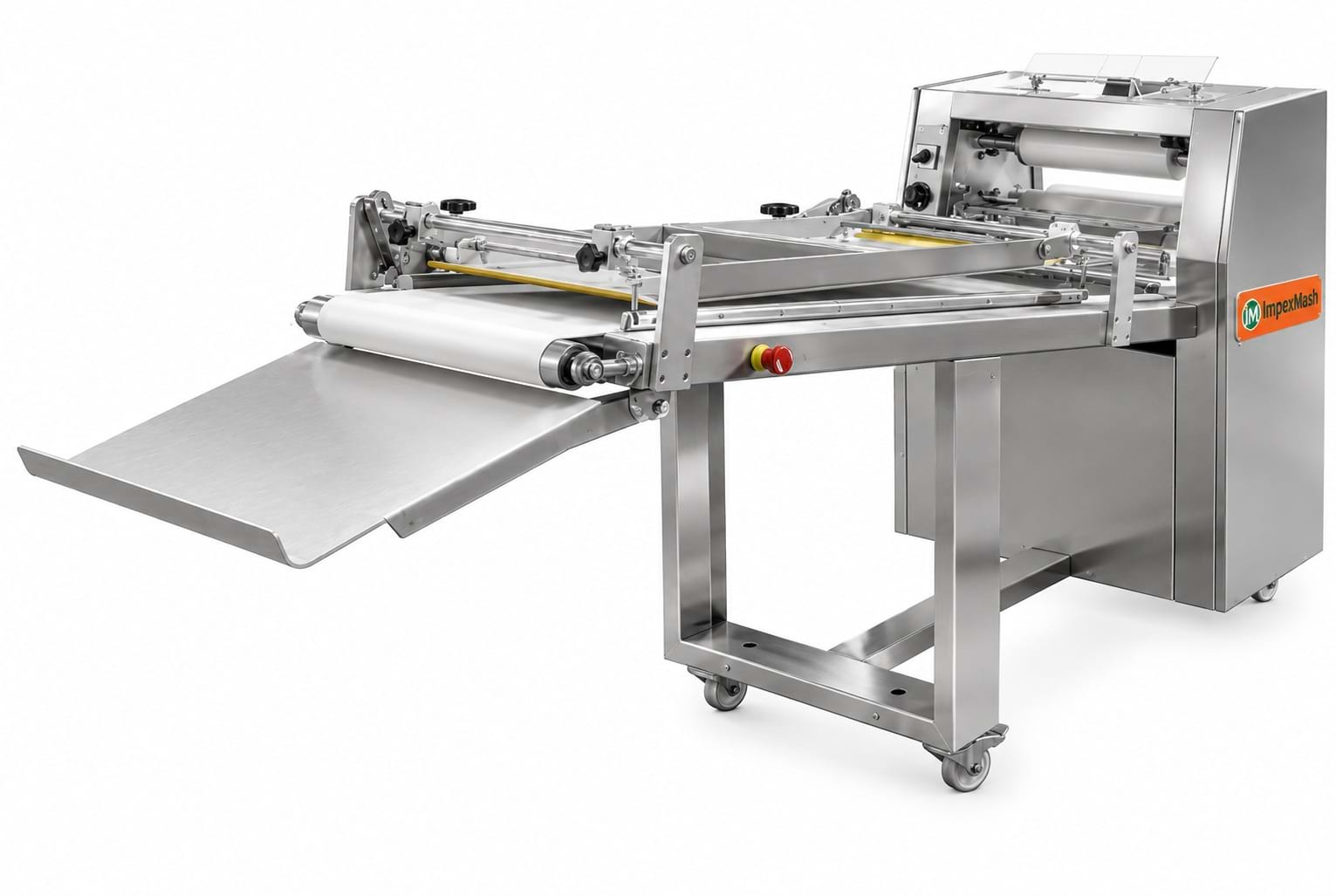

Impex Roll-400 dough rolling machine

The Impex Roll-400 dough moulder is designed to give pre-rounded dough pieces a cylindrical shape. The equipment is used for producing a wide range of bakery products.

The machine is recommended for operation as part of lines with a capacity of up to 2500 pcs/h at bakery enterprises. It works with dough pieces weighing from 0.2 to 0.8 kg.

Thanks to its reliable design, convenient adjustments, and expanded technological capabilities, the Impex Roll-400 makes it possible to obtain products with an attractive appearance, a high-quality crumb structure, and embossed cuts on the surface.

Operating principle of the Impex Roll-400

A spherical dough piece enters the receiving hopper, which is equipped with a protective locking device and a centering device. The dough piece is then rolled into a sheet of the required thickness by two pairs of sheeting rollers.

After that, the pre-rolled dough piece moves onto the moving conveyor belt, is rolled into a cylinder using the pre-rolling mesh, and, passing under the moulding plate, is formed into a cylindrical dough piece of the required length and diameter.

Advantages of the dough moulder

• Suitable for producing a wide range of bakery products.
• Machine capacity - up to 2500 pcs/h.
• Weight range of dough pieces - from 0.2 to 0.8 kg.
• Adjustable device for centering the dough piece in the receiving hopper.
• Transparent doors of the sheeting roller unit are equipped with locks and safety interlocks.
• The grooving on the first pair of rollers improves the gripping of dough pieces with reduced moisture content.
• Quick adjustment of the gap between the lower sheeting rollers in the range of 1-15 mm.
• Possibility to adjust the gap between the moulding plate and the conveyor belt.
• Adjustment of the distance between guiding elements for forming the ends of dough pieces.
• The possibility of adjusting the gap between the upper sheeting rollers is provided.
• All working surfaces that come into contact with dough are made of materials approved for the food industry.
• The working surfaces have non-stick properties.
• The moulding plate and the protective locking device of the loading hopper can be tilted back and fixed for cleaning and maintenance.
• The multilayer seamless polymer conveyor belt has increased wear resistance.
• The conveyor design prevents the conveyor belt from slipping during operation.
• Four swivel wheel supports, two of which have brake locks, allow the machine to be moved around the production area.
• The interlock system ensures personnel safety during operation and maintenance.
